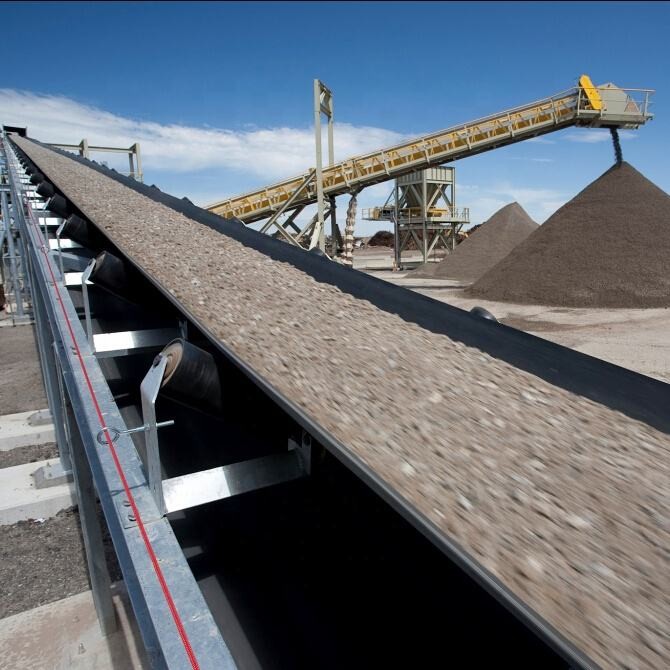

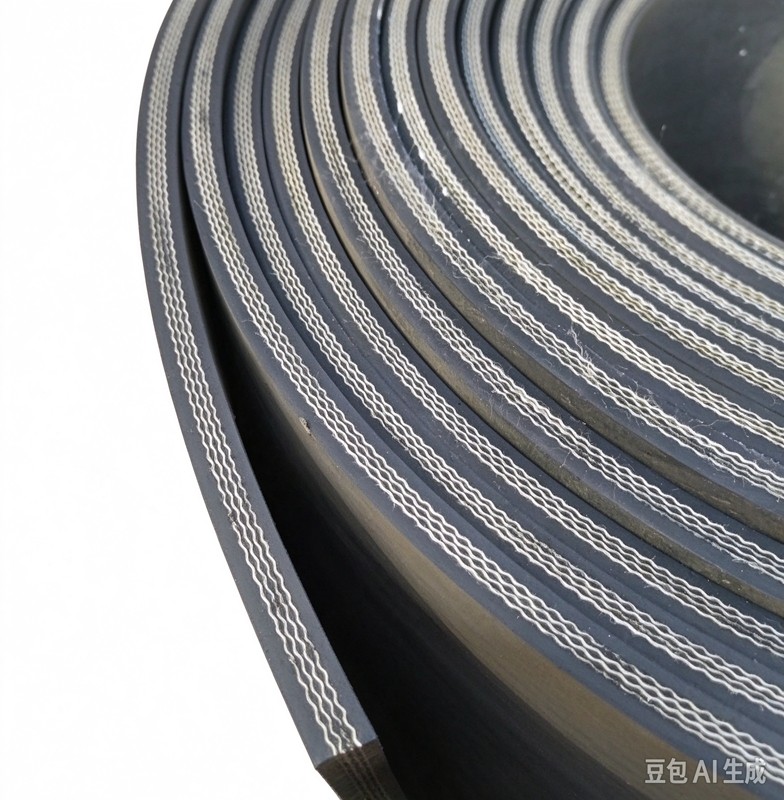

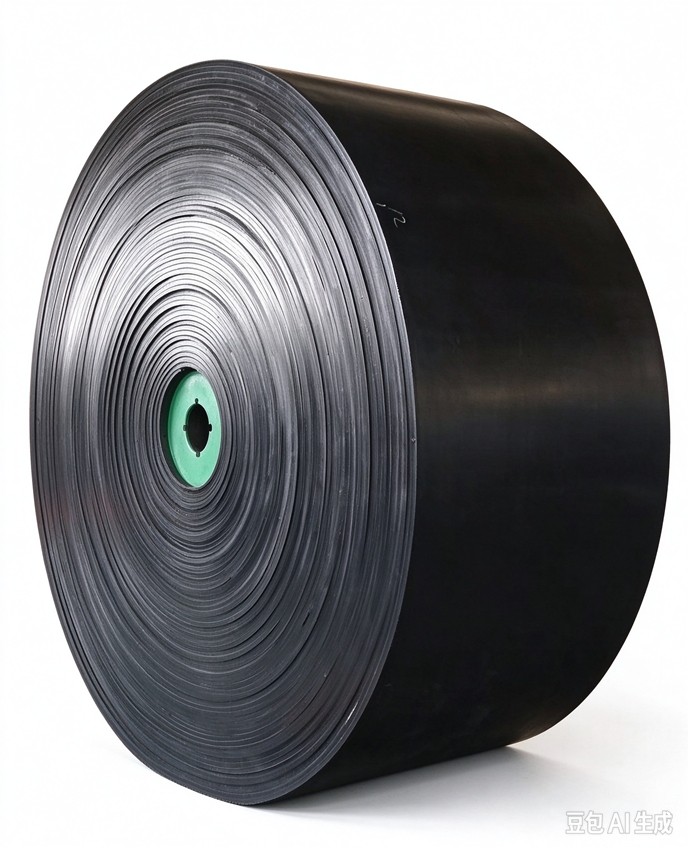

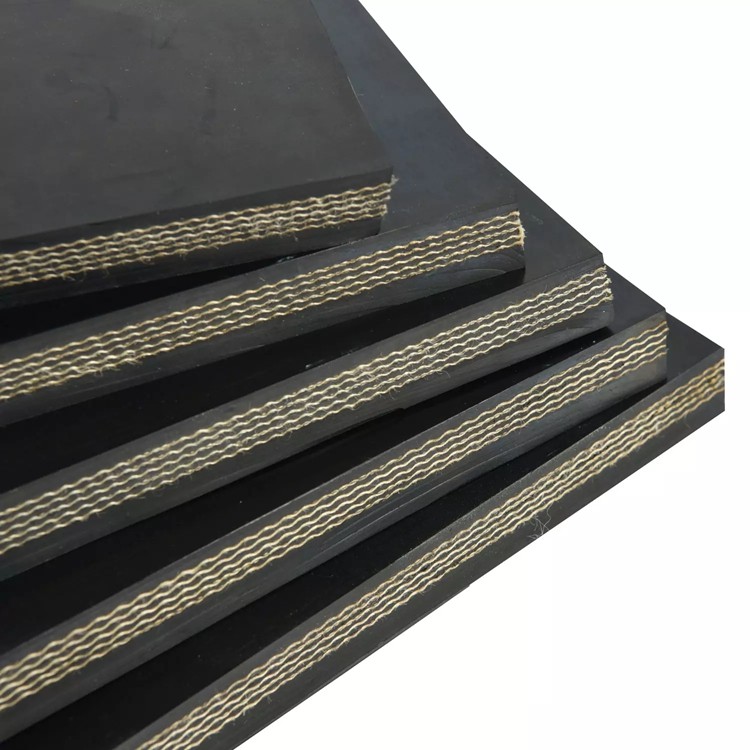

Nylon is one of the best quality synthetic fibers that the rubber industry **uses** now. The nylon canvas is woven by nylon fibers both in warp and in weft. **It** is the most widely used fabric in rubber industry, and its **outstanding** merits are its high abrasion resistance, high tensile strength and good fatigue resistance. Conveyor belts with nylon canvas inside have the characteristics of thin belt body, high adhesion between plies, splendid flexibility and long working life. Nylon conveyor belts are suitable for medium, long-distance and heavy-load transportation of materials, widely used in **mining**, **metallurgical** industry and architectural industry, ports, etc.
Performance Advantage
High abrasion resistance
High tensile strength
Good fatigue resistance
Thin belt body
High adhesion between plies
Splendid flexibility
Long working life
Application Areas
Mining
Metallurgical industry
Architectural industry
Ports
| Fabric | Fabric structure | Fabric | Ply | ( Nmm) Strength series | Cover thickness(mm) | Width | |||||||
| type | Specs | thickness | (mm) | Length | |||||||||
| (mm/p) | (m) | ||||||||||||
| Warp | Weft | 2ply | 3ply | 4ply | 5ply | 6ply | Upper | Lower | |||||
| Nylon | Nylon | Nylon | NN-100 | 0.75 | 200 | 300 | 400 | 500 | 600 | 1.5-8 | 0-4.5 | 400~2500 | 《600 |
| (NN) | (NN) | (N) | NN-150 | 0.8 | 300 | 450 | 600 | 750 | 900 | ||||
| NN-200 | 0.9 | 400 | 600 | 800 | 1000 | 1200 | |||||||
| NN-250 | 1.15 | 500 | 750 | 1000 | 1250 | 1500 | 500~2500 | ||||||
| NN-300 | 1.25 | _ | 900 | 1200 | 1500 | 1800 | 1000~2500 | ||||||
| NN-400 | 1.45 | _ | _ | 1600 | 2000 | 2400 | |||||||
| NN-500 | 1.55 | _ | _ | 2000 | 2500 | 3000 | |||||||
Physical property of cover rubber
| Type | Tensile | Elongation | Abrasion | Change rate of tensile strength and elongation at break after aging | |
| Mpa》 | Kgf/cm² | %》 | mm²《 | % | |
| (H) | 24 | 240 | 450 | 120 | -20~+25 |
| (D) | 18 | 180 | 400 | 100 | -20~+25 |
| (L) | 15 | 150 | 350 | 200 | -20~+25 |
